PRODUCTS

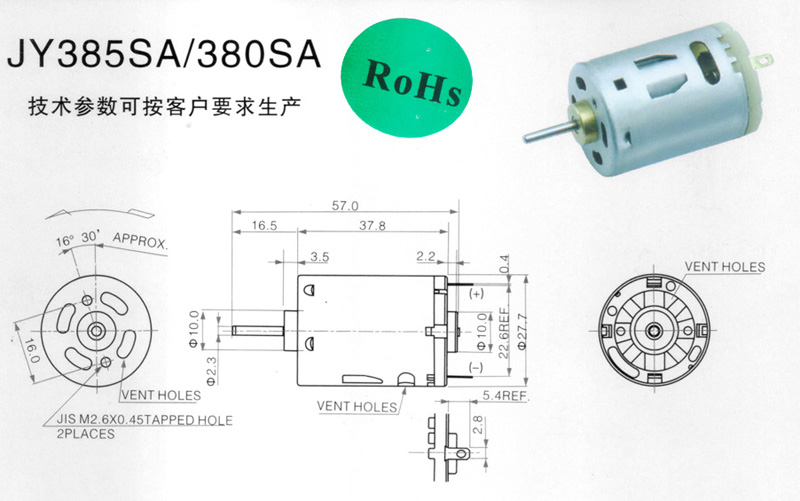

Item No : JY385SA&380SA
Name :
Detail :
Name :
Detail :
| 型號(hào) | 電壓 | 空載 | 最大效率下 | 制動(dòng) | ||||||
| 工作范圍 | 額定電壓 | 轉(zhuǎn)速 | 電流 | 轉(zhuǎn)速 | 電流 | 力矩 | 功率 | 力矩 | 功率 | |
| r/min | A | r/min | A | g.cm | W | g.cm | A | |||
| JY385S-2073 | 9-24V | 20V CONSTANT | 18300 | 0..21 | 15800 | 0.90 | 75 | 12.2 | 550 | 5.40 |
| JY385S-12160 | 12-24 | 12V CONSTANT | 5600 | 0.12 | 4000 | 0.30 | 34.29 | 1.41 | 120 | 0.75 |
| JY385S-16200 | 10-15 | 12 V CONSTANT | 10000 | 0.07 | 8800 | 0.31 | 25 | 2.26 | 220 | 2.15 |
| JY385S-4523 | 1.2-1.5 | 1.25V CONSTANT | 9100 | 0.60 | 7300 | 2.50 | 27 | 2.02 | 140 | 10.2 |
| JY385S-2865 | 1.5-3.0 | 1.5V CONSTANT | 4600 | 0.12 | 3700 | 0.53 | 1 | 0.42 | 62 | 2.30 |
| 3 V CONSTANT | 9200 | 0.16 | 7800 | 0.85 | 20 | 1.6 | 130 | 4.7 | ||
| JY385S-20120 | 3-6 | 3 V CONSTANT | 5000 | 0.07 | 4100 | 0.33 | 13 | 0.55 | 75 | 1.52 |
| 4.5V CONSTANT | 7500 | 0.08 | 6300 | 0.42 | 18 | 1.16 | 113 | 2.21 | ||
| JY385S-2865 | 1.5-4.5 | 3 V CONSTANT | 7100 | 0.16 | 5900 | 0.88 | 26 | 1.57 | 170 | 4.80 |
| 4.5V CONSTANT | 10400 | 0.19 | 8900 | 1.15 | 34 | 3.10 | 240 | 6.90 | ||
| JY385S-2865 | 4.0-6.0 | 4.5V CONSTANT | 13600 | 0.27 | 11500 | 1.15 | 25 | 2.95 | 180 | 6.90 |
| JY385S-20120 | 4.5-9.0 | 24V CONSTANT | 7500 | 0.1 | 6100 | 0.48 | 19 | 1.19 | 105 | 2.13 |
| 24V CONSTANT | 9900 | 0.12 | 8200 | 0.58 | 23 | 1.93 | 135 | 2.82 | ||
| JY385S-2485 | 4.5-8.4 | 7.2V CONSTANT | 16800 | 0.21 | 14500 | 1.10 | 30 | 4.46 | 220 | 6.60 |
| JY385S-2865 | 4.5-9.0 | 6 V CONSTANT | 14000 | 0.28 | 11000 | 1.40 | 40 | 4.51 | 305 | 9.10 |
